| Parameter | Value |
|---|---|
| Model | TIG300A |
| Input Voltage (V) | AC380 ± 15% |
| Arcing Way | HF (High Frequency) |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 85 |
| Rated Input Current (A) | MMA: 18.4 / TIG: 12.7 |
| Power Factor | 0.93 |
| No Load Voltage (V) | 54 |
| No Load Loss (W) | 60 |
| Output Current Range (A) | 10-300 |
| Rated Output Voltage (V) | MMA: 32 / TIG: 22 |
| Duty Cycle (%) | 60 |
| Net Weight (KG) | 14.9 |
| Dimensions (MM) | 490 x 210 x 380 |
| Insulation Grade | F |
| Protection Grade | IP21S |

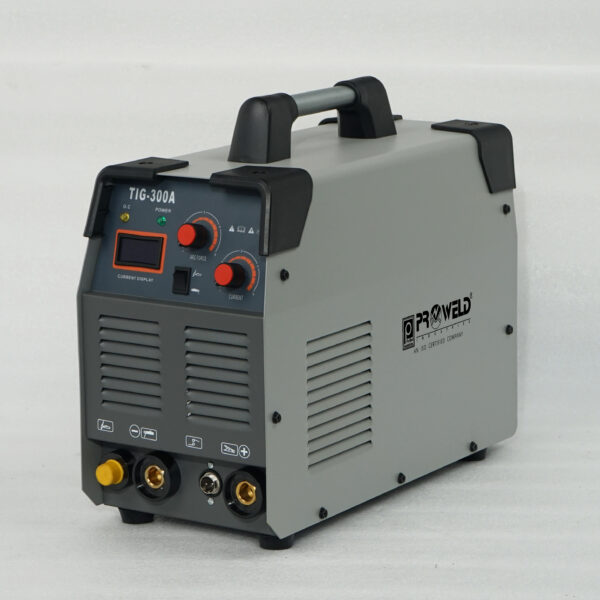

TIG 300 A
Key Features
-
Digital current display provides intuitive and reliable monitoring for precise welding current adjustment.
-
Advanced inverter technology supports multi-function usage for argon arc welding and manual arc welding across various metals.
-
Automatic grid voltage compensation maintains stable arc and weld quality despite voltage fluctuations common in Indian power supply.
-
Features HF arcing for easy and noiseless arc starts, with minimal spatter and no magnetic deflection for clean weld seams.
-
Compact, lightweight, and energy-efficient (14.9kg) design improves usability and portability for workshop and on-site applications.
-
Suitable for welding diverse metals such as stainless steel, carbon steel, and copper, expanding versatility for various industrial needs.
-
Rated with a 60% duty cycle and output current range up to 300A, supporting continuous heavy-duty welding tasks.
| Phases | Single phase |
|---|
