| Parameter | Value |
|---|---|
| Model | TIG300 MOS/3 |
| Input Voltage (V) | AC380 ± 15% |
| Arcing Way | HF (High Frequency) |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 85 |
| Rated Input Current (A) | MMA: 18.4 / TIG: 12.7 |
| Power Factor | 0.93 |
| No Load Voltage (V) | 54 |
| No Load Loss (W) | 60 |
| Output Current Range (A) | 10-300 |
| Rated Output Voltage (V) | MMA: 32 / TIG: 22 |
| Duty Cycle (%) | 60 |
| Net Weight (KG) | 14.9 |
| Dimensions (MM) | 490 x 210 x 380 |
| Insulation Grade | F |
| Protection Grade | IP21S |

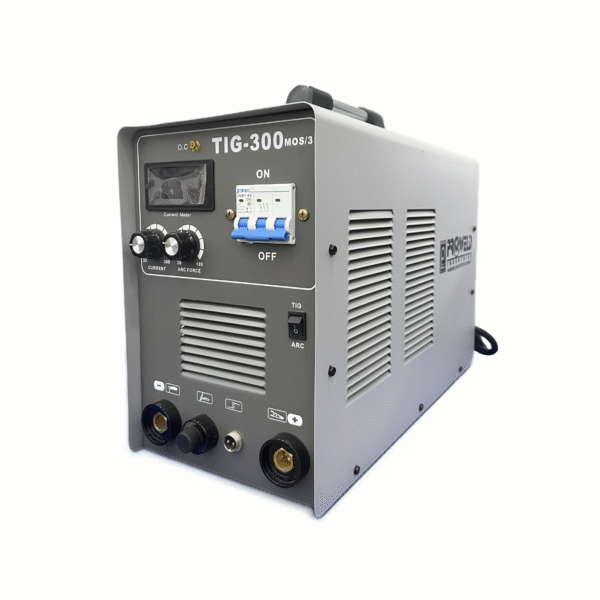

TIG 300 (MOSFET)
-
Digital welding current display for clear, intuitive monitoring and precise weld control.
-
Automatic compensation for grid voltage fluctuations provides stable arc and consistent quality in varying power conditions.
-
Advanced inverter technology supports multi-functions for argon arc (TIG) and manual arc (MMA) welding on a variety of metals.
-
Easy arc starting with HF high-frequency arcing, no noise, minimal spatter, and no magnetic distortion for clean weld finishes.
-
Compact, efficient, and lightweight (14.9kg) for easy portability and use in workshops and field applications.
-
Suitable for welding stainless steel, carbon steel, copper, and other metals, enhancing industrial versatility.
-
Rated with a 60% duty cycle and output range up to 300A, supporting continuous industrial-grade welding operations.
| Phases | 3 phase |
|---|
