| Parameter | Value |
|---|---|
| Model | TIG350AS |
| Input Voltage (V) | AC220 ± 15% |
| Arcing Way | HF (High Frequency) |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 85 |
| Rated Input Current (A) | MMA: 18.4 / TIG: 12.7 |
| Power Factor | 0.73 |
| No Load Voltage (V) | 54 |
| No Load Loss (W) | 60 |
| Output Current Range (A) | 10-350 |
| Rated Output Voltage (V) | MMA: 32 / TIG: 22 |
| Duty Cycle (%) | 60 |
| Net Weight (KG) | 14.9 |
| Dimensions (MM) | 490 x 210 x 380 |
| Insulation Grade | F |
| Protection Grade | IP21S |

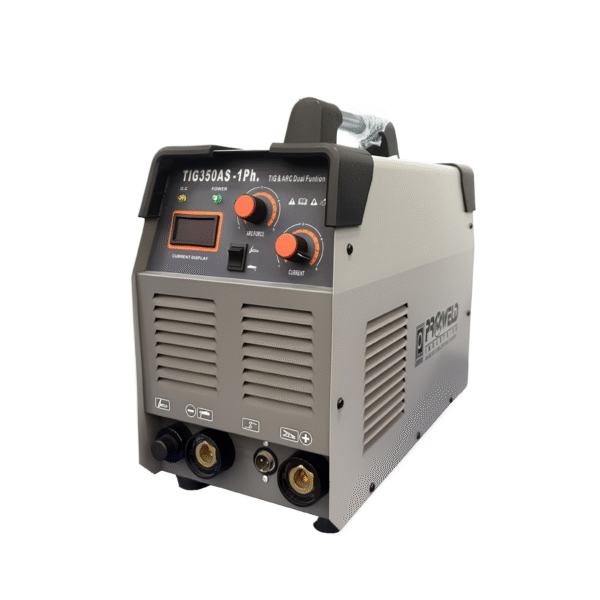

TIG 350 AS
Key Features
-
Digital welding current display allows precise and intuitive adjustment for professional weld control.
-
Automatic compensation for grid voltage fluctuations ensures steady arc and consistent weld quality, suitable for unstable power environments.
-
Advanced inverter technology supports multi-function welding for argon arc and manual arc welding on various metals.
-
Easy arc starting via HF arcing, delivering noiseless operation, minimal spatter, and clean weld seams without magnetic deflection.
-
Compact, lightweight, and energy-efficient design (14.9kg) enhances portability for workshops and on-site use.
-
Suitable for diverse metals including stainless steel, carbon steel, and copper, expanding industrial application possibilities.
-
Rated with a 60% duty cycle and wide output current range up to 350A for continuous heavy-duty welding.
| Phases | Single phase |
|---|
