| Parameter | Value |
|---|---|
| Model | TIG400GA |
| Input Voltage (V) | AC380 ± 15% |
| Arcing Way | HF (High Frequency) |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 85 |
| Rated Input Current (A) | MMA: 27.6 / TIG: 20 |
| Power Factor | 0.93 |
| No Load Voltage (V) | 68 |
| No Load Loss (W) | 100 |
| Output Current Range (A) | 15-400 |
| Rated Output Voltage (V) | MMA: 36 / TIG: 26 |
| Duty Cycle (%) | 60 |
| Post Flow (S) | 0-5 |
| Thrust Adjustment Range (A) | 0-100 |
| Net Weight (KG) | 20 |
| Dimensions (MM) | 520 x 265 x 415 |
| Insulation Grade | F |
| Protection Grade | IP21S |

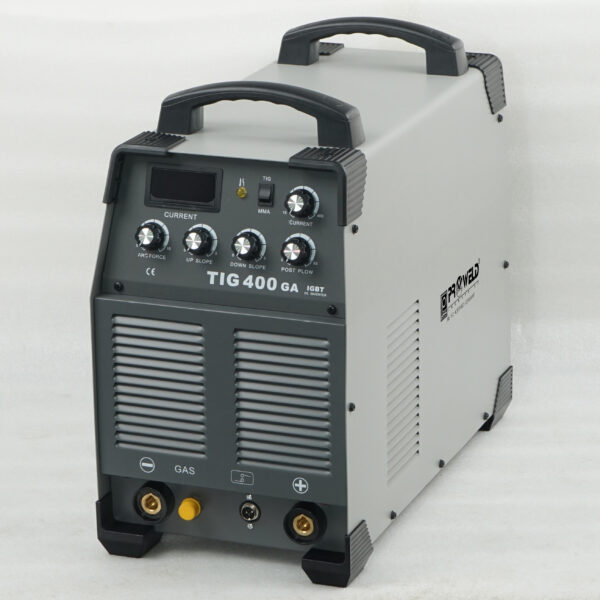

TIG 400 GA
Key Features
-
Digital display for intuitive and precise weld current setting, providing clarity and ease for both TIG and MMA functions.
-
Automatic voltage fluctuation compensation ensures arc stability even in challenging, unstable Indian grid conditions, delivering high welding quality.
-
Advanced inverter technology supports multi-function operation for TIG (argon arc) and MMA (manual arc) welding, suitable for a wide array of materials including stainless steel, carbon steel, and copper.
-
HF high-frequency arc starting offers effortless ignition and a smooth, stable arc with minimal spatter and no magnetism effects, ensuring cleaner, stronger weld seams.
-
Includes post flow (0-5 seconds) and thrust adjustment (0-100A) for enhanced weld control, especially beneficial for precision TIG jobs.
-
High duty cycle (60%) and output current range (15-400A) support long-duration, heavy-duty industrial welding tasks.
-
Compact, energy-efficient build (20kg) and robust design make it suitable for workshop and site applications where reliability is critical.
| Phases | 3 phase |
|---|
