| Parameter | Value |
|---|---|
| Model | TIG220 |
| Input Voltage (V) | AC220 ± 15% |
| Arcing Way | HF (High Frequency) |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 80 |
| Rated Input Current (A) | MMA: 43.6 / TIG: 28 |
| Power Factor | 0.73 |
| No Load Voltage (V) | 56 |
| No Load Loss (W) | 40 |
| Output Current Range (A) | 10-220 |
| Rated Output Voltage (V) | MMA: 28 / TIG: 18 |
| Duty Cycle (%) | 60 |
| Net Weight (KG) | 7 |
| Dimensions (MM) | 400 x 175 x 290 |
| Insulation Grade | F |
| Protection Grade | IP21S |

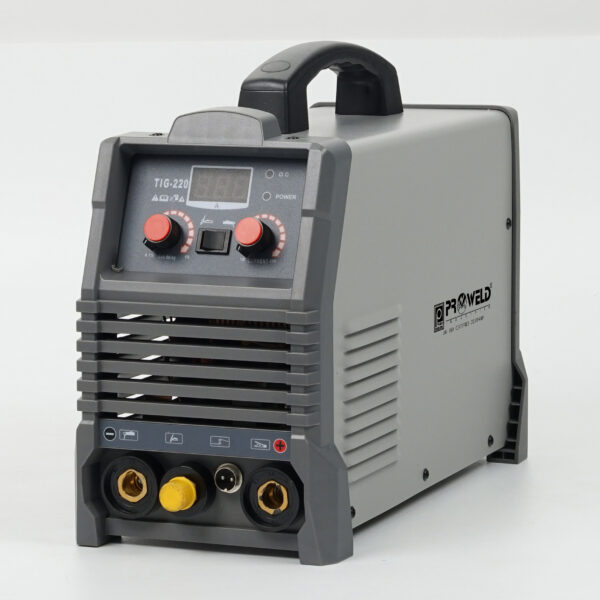

TIG 220 A
-
Advanced inverter technology supports dual MMA and TIG welding functions, providing versatility for a broad range of metal fabrication and repair tasks.
-
Automatic grid voltage compensation enables stable welding performance despite fluctuations in power supply, ensuring consistent weld quality.
-
Features HF arcing for easy, noiseless arc start, producing minimal spatter and clean weld seams without magnetic deflection.
-
Compact and lightweight design (7kg) improves portability and ease of use in workshops or on-site environments.
-
Suitable for welding various metals including stainless steel, carbon steel, and copper, accommodating diverse industrial uses.
-
Rated with a 60% duty cycle and wide output current range (10-220A) for efficient continuous welding.
| Phases | Single phase |
|---|
