| Parameter | Value |
|---|---|
| Model | TIG351A |
| Input Voltage (V) | AC380 ± 15% |
| Arcing Way | HF (High Frequency) |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 85 |
| Rated Input Current (A) | MMA: 18.4 / TIG: 12.7 |
| Power Factor | 0.93 |
| No Load Voltage (V) | 54 |
| No Load Loss (W) | 60 |
| Output Current Range (A) | 10-350 |
| Rated Output Voltage (V) | MMA: 32 / TIG: 22 |
| Duty Cycle (%) | 60 |
| Net Weight (KG) | 14.9 |
| Dimensions (MM) | 490 x 210 x 380 |
| Insulation Grade | F |
| Protection Grade | IP21S |

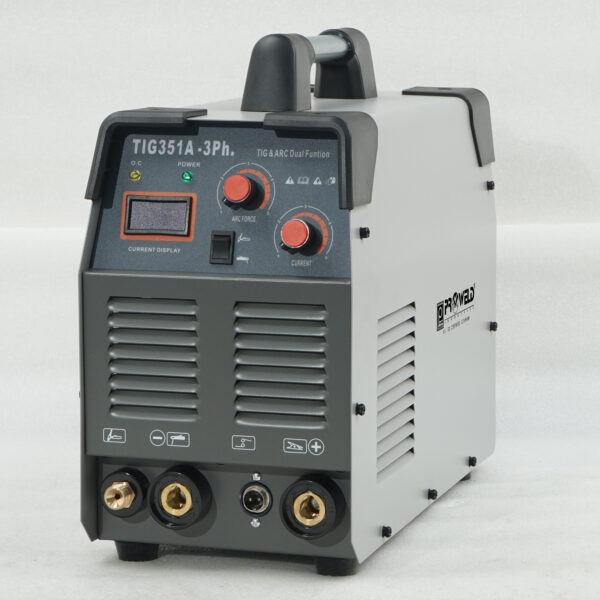

TIG 351 A
Key Features
-
Digital welding current display provides intuitive, precise adjustment and monitoring for both MMA and TIG operations.
-
Automatic grid voltage compensation technology ensures stable arc performance and protects against voltage fluctuations commonly found in industrial settings.
-
Advanced inverter technology with high efficiency (85%) supports reliable argon arc (TIG) and manual arc (MMA) welding for a range of metals including stainless steel, carbon steel, and copper.
-
Easy high-frequency (HF) arc starting provides stable current delivery, fast dynamic response, low noise, minimal spatter, and clean welds without magnetic deflection.
-
Compact, energy-saving, and portable design (14.9kg) makes it suitable for workshops, sites, and mobile welding tasks.
-
60% duty cycle and broad output range (10-350A) ensure continuous heavy-duty welding without performance loss.
| Phases | 3 phase |
|---|
