| Specification | Value |
|---|---|
| Input Voltage (V) | AC380±15% |
| Wire Feeding Speed (M/MIN) | 3-15 |
| Frequency (Hz) | 50/60 |
| Protection Grade | IP21S |
| Rated Input Current (A) | 37.4 |
| Insulation Grade | F |
| Output Current Range (A) | 40-400 |
| Welding Wire Diameter (MM) | 1.0 / 1.2 / 1.6 |
| Output Voltage Range (V) | 12-45 |
| Post Flow (S) | 1.5±0.5 |
| Duty Cycle (%) | 60 |
| Suitable Thickness (MM) | Above 1.0 |
| Power Factor | 0.93 |
| Net Weight (KG) | 23.6 |
| Efficiency (%) | 85 |
| Dimension (MM) | 540x265x510 |
| Wire Feeder Type | Separated |

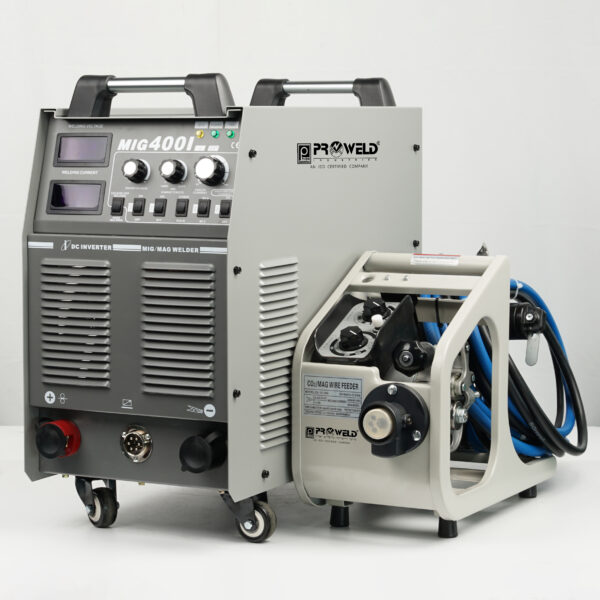

MIG 400 IJ
Key Feature
-
Advanced Protection Functions: Includes phase loss, overvoltage, undervoltage, and overload protection ensuring long-term machine durability.
-
Automatic Wire Feeder Protection: Motor stall or wire feeding issues trigger automatic protection and recovery, preventing damage and downtime.
-
Versatile Welding Capability: Suitable for all welding positions and ideal for novice welders, enhancing usability and flexibility.
-
Flux-Cored Wire Compatible: Supports special flux-cored welding wire (E71T-1C) enabling stable vertical welding over extended power line distances exceeding 50 meters.
-
Expert Welding Database: Synergic adjustment with automatic parameter correlation for easy and reliable welding results.
-
Rich Adjustable Parameters: Comprehensive internal menu allows users to customize functions to meet specific welding requirements.
-
High Duty Cycle: 60% duty cycle supports intensive industrial use with consistent performance.
-
Wide Output Range: Output current range from 40 to 400 A and welding wire diameter versatility supports varied welding tasks.
| Product Type | MIG 3 phase Outside Wire Feeder |
|---|
