| Specification | Value |
|---|---|
| Input Voltage (V) | AC380±15% |
| Wire Feeding Speed (M/MIN) | 2-24 |
| Frequency (Hz) | 50/60 |
| Protection Grade | IP23S |
| Rated Input Current (A) | MMA14.4/MIG12.7 |
| Insulation Grade | F |
| Output Current Range (A) | 30-250 |
| Welding Wire Diameter (MM) | 0.8/1.0 |
| Output Voltage Range (V) | MMA30/MIG26.5 |
| Post Flow (S) | 0-10 |
| Duty Cycle (%) | 60 |
| Suitable Thickness (MM) | Above 0.6 |
| Power Factor | 0.93 |
| Wire Feeder Type | Separated |
| Efficiency (%) | 85 |
| Net Weight (KG) | 13 |
| No Load Voltage (V) | 54 |
| Dimension (MM) | 440x200x330 |

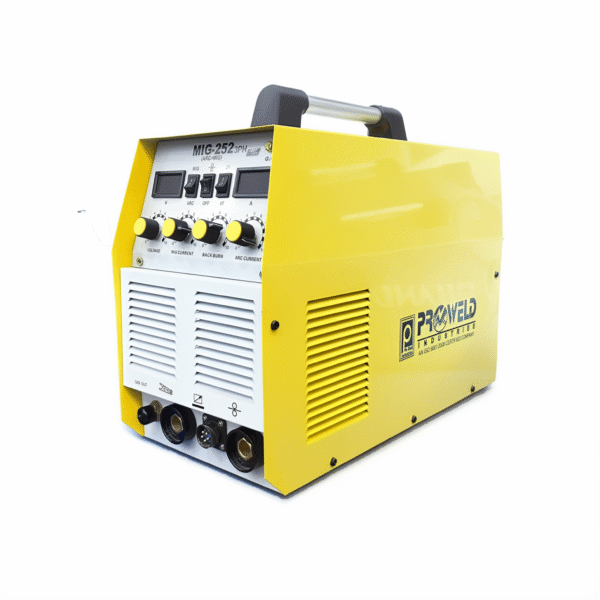

MIG 252
-
Rapid Spot Welding: Delivers outstanding performance, ideal for thin plate and sheet welding.
-
High-Quality Weld Seam: Creates full, smooth, and visually appealing welds in industrial applications.
-
Versatile Welding Functions: Supports manual welding of galvanized sheets and stainless steel.
-
Strong Penetration: Provides concentrated current for robust and deep welds.
-
Stable Arc Performance: Soft arc with easy ignition and excellent waveform stability for professional results.
-
Multiple Adjustable Parameters: Preset various welding settings to match specific user or material needs.
-
Efficient Wire Feeding: High-power motor and 5-meter welding gun ensure fast and reliable wire feed—even at a distance.
-
Optimized Power Factor: Superior efficiency and power management for industrial energy savings.
| Product Type | MIG 3 phase Outside Wire Feeder |
|---|
