| Specification | Value |
|---|---|
| Input Voltage (V) | AC220±15% |
| Wire Feeding Speed (M/MIN) | 2-24 |
| Frequency (Hz) | 50/60 |
| Protection Grade | IP23S |
| Rated Input Current (A) | MMA14.4/MIG12.7 |
| Insulation Grade | F |
| Output Current Range (A) | 30-250 |
| Welding Wire Diameter (MM) | 0.8/1.0 |
| Output Voltage Range (V) | MMA30/MIG26.5 |
| Post Flow (S) | 0-10 |
| Duty Cycle (%) | 60 |
| Suitable Thickness (MM) | Above 0.6 |
| Power Factor | 0.73 |
| Wire Feeder Type | Separated |
| Efficiency (%) | 85 |
| Net Weight (KG) | 13 |
| No Load Voltage (V) | 54 |
| Dimension (MM) | 440x200x330 |

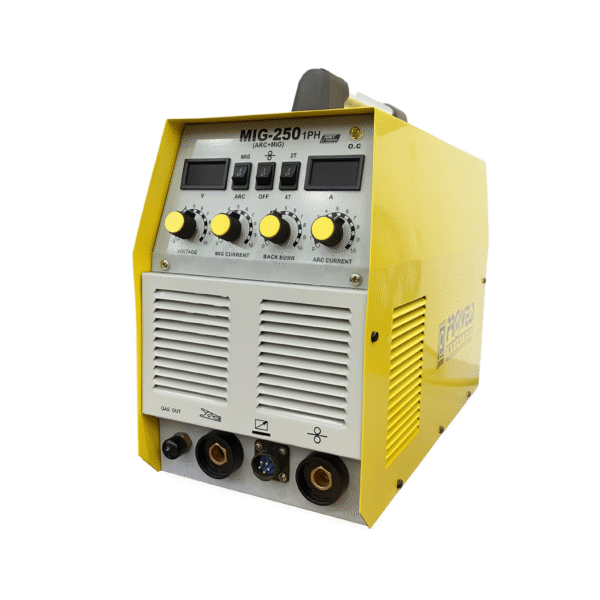

MIG 250
Key Features
-
Rapid Spot Welding: Especially suitable for thin plate welding, ensuring precise and efficient results.
-
Beautiful Weld Seam: Weld seams are full, smooth, and beautifully formed for professional finishes.
-
Versatile Welding Functions: Capable of manual welding, including galvanized and stainless steel applications.
-
Strong Penetration: Concentrated current offers deep and reliable welds even on thick materials.
-
Stable Arc Performance: Soft arc with easy arc starting delivers accurate control and excellent stability.
-
Advanced Control Adjustments: Multiple welding parameters and functions can be preset for various needs.
-
High-Speed Wire Feeding: Powerful 5-meter welding gun supports rapid wire feeding, improving productivity.
| Product Type | MIG 1 phase Outside Wire Feeder |
|---|
