| Specification | Value |
|---|---|
| Input Voltage (V) | AC380±15% |
| Efficiency (%) | 85 |
| Frequency (Hz) | 50/60 |
| Insulation Grade | F |
| Rated Input Current (A) | 12 |
| Protection Grade | IP21S |
| No Load Voltage (V) | 240 |
| Arcing Way | Untouched |
| Output Current Range (A) | 20-70 |
| Pressure of Air Compressor (KG) | 3-4 |
| Rated Output Voltage (V) | 104 |
| Cutting Thickness (MM) | 1-20 |
| Duty Cycle (%) | 60 |
| Net Weight (KG) | 10.1 |
| No Load Loss (W) | 60 |
| Dimension (MM) | 470x210x380 |
| Power Factor | 0.93 |

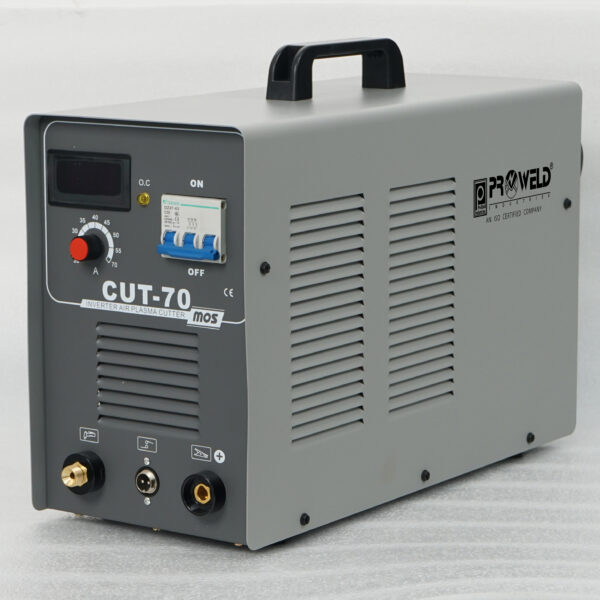

CUT 70 (MOSFET)
-
High Duty Cycle: Supports extended cutting operations with reliable performance.
-
Advanced PWM Control Technology: Ensures stable operation with fast dynamic response and high cost-effectiveness.
-
User-Friendly Front Panel: Digital display with protection indicators and adjustable cutting current for precise control.
-
High Efficiency: Over 93% efficiency with passive power compensation to achieve a high power factor of 0.93.
-
Strong Grid Adaptability: Performs reliably across varying power grid conditions.
-
15mm Maximum Clean Cutting Thickness: Delivers excellent cutting quality up to 15mm in thickness with high performance ratio.
-
Lightweight and Compact: At just 10.1 kg, it is easy to handle and transport.
| Phases | Single phase |
|---|
