| Specification | Value |
|---|---|
| Input Voltage (V) | AC380±15% |
| Efficiency (%) | 85 |
| Frequency (Hz) | 50/60 |
| Insulation Grade | F |
| Rated Input Current (A) | 21.5 |
| Protection Grade | IP21S |
| No Load Voltage (V) | 340 |
| Arcing Way | Untouched |
| Output Current Range (A) | 20-140 |
| Pressure of Air Compressor (KG) | 4-5 |
| Rated Output Voltage (V) | 118 |
| Cutting Thickness (MM) | 1-40 |
| Duty Cycle (%) | 60 |
| Net Weight (KG) | 32.6 |
| No Load Loss (W) | 80 |
| Dimension (MM) | 550x315x550 |
| Power Factor | 0.93 |

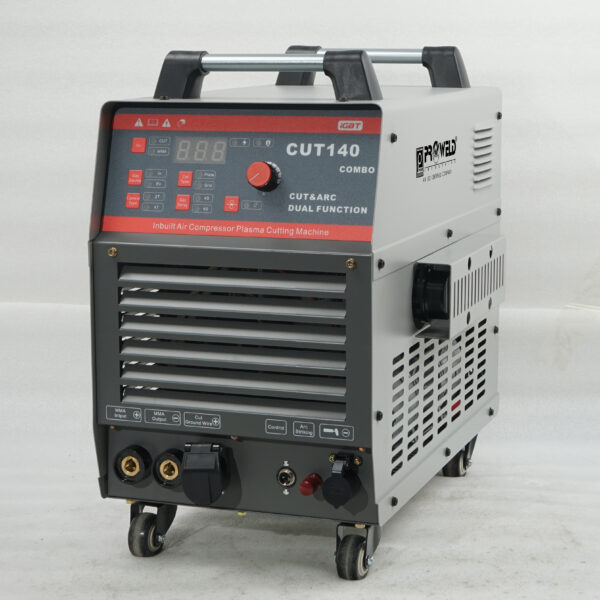

CUT 140 Combo
Key Features
-
High Duty Cycle & Inbuilt Air Compressor: Supports long cutting cycles with consistent air supply, ideal for industrial use.
-
Double IGBT Module: Inverter frequency of 20KHz delivers powerful and efficient cutting with a maximum thickness of 40mm, suitable for perforation and beveling.
-
Advanced PWM Control: Ensures stable performance with high-quality output.
-
New Pilot Arc Design: Guarantees 100% arc starting and continuous arc for seamless cutting operations.
-
Fast Cutting Speed & Energy Efficient: Reduces cutting time and operational costs.
-
Wide Power Grid Adaptability: Functions reliably under voltage fluctuations from 320V to 460V.
-
Comprehensive Protection Circuits: Includes overcurrent, overheating, undervoltage, and phase loss protection for enhanced safety.
-
Tri-proof Ducts Design: Waterproof, dustproof, and windproof ducts improve load endurance, making it suitable for tough industrial environments.
| Phases | 3 phase |
|---|
