| Parameter | Value |
|---|---|
| Model | ARC360S IJ5 |
| Input Voltage (V) | AC220 ± 15% |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 80 |
| Rated Input Current (A) | 39 |
| Power Factor | 0.73 |
| No Load Voltage (V) | 82 |
| No Load Loss (W) | 40 |
| Output Current Range (A) | 30-360 |
| Rated Output Voltage (V) | 28 |
| Duty Cycle (%) | 60 |
| Net Weight (KG) | 5.5 |
| Dimensions (MM) | 470 x 210 x 380 |
| Insulation Grade | F |
| Protection Grade | IP21S |

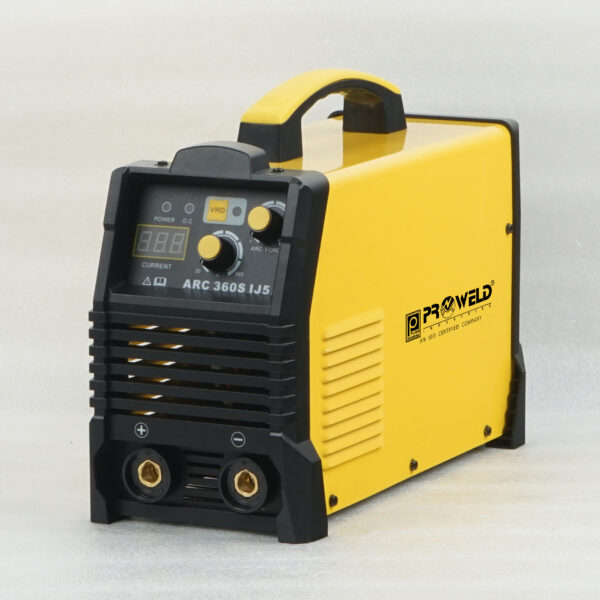

ARC360S IJ5
-
Unique IGBT high-frequency inverter technology offers fast dynamic response and stable arc performance, ideal for professional MMA welding applications.
-
Compact and lightweight design (5.5kg) combined with energy efficiency (80%) ensures portability and cost savings in workshop and on-site use.
-
Supports continuous welding with 4.0mm electrodes, compatible with a variety of acid, alkaline, and cellulose electrode types for versatile applications.
-
Equipped with arc force, fast arcing, and non-stick electrode features to enhance weld quality and reduce electrode sticking, improving operator efficiency.
-
Features automatic overcurrent and overheating protection for safe and reliable operation during extended welding periods.
-
Includes automatic compensation for power grid voltage fluctuations, maintaining stable welding performance even under unstable electrical supply conditions common in India.
-
Rated for a 60% duty cycle and an output current range up to 360A, supporting heavy-duty and continuous welding tasks.
| Phases | Single phase |
|---|
