| Parameter | Value |
|---|---|
| Model | ARC400T |
| Input Voltage (V) | AC380 ± 15% |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 85 |
| Rated Input Current (A) | 27.6 |
| Power Factor | 0.93 |
| No Load Voltage (V) | 60 |
| No Load Loss (W) | 60 |
| Output Current Range (A) | 30-400 |
| Rated Output Voltage (V) | 36 |
| Duty Cycle (%) | 60 |
| Net Weight (KG) | 8.8 |
| Dimensions (MM) | 470 x 210 x 380 |
| Insulation Grade | F |
| Protection Grade | IP21S |

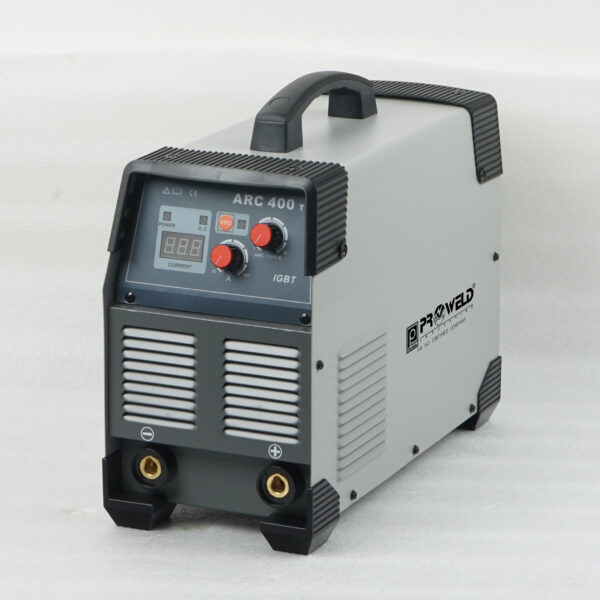

ARC 400 T
Key Features
-
Unique IGBT high-frequency inverter technology offers fast dynamic response and stable arc performance for industrial-grade MMA welding.
-
Compact and lightweight design with high energy efficiency (85%) supports portability and reduces operational costs in diverse welding environments.
-
Supports continuous welding with 5.0mm electrodes, compatible with acid, alkaline, and cellulose electrode types, ensuring broad application versatility.
-
Equipped with arc force, fast arcing, and anti-stick electrode functions to improve weld quality and reduce electrode sticking for smoother operations.
-
Features automatic overcurrent and overheating protection, enhancing machine safety and reliability during extended welding sessions.
-
Includes automatic compensation for power grid voltage fluctuations, maintaining stable welding performance even in unstable electrical supply conditions prevalent in India.
-
Designed with a high duty cycle of 60% and output current range up to 400A, allowing efficient handling of demanding welding projects.
| Phases | 3 phase |
|---|
