| Parameter | Value |
|---|---|
| Model | ARC400 IJ6 |
| Input Voltage (V) | AC380 ± 15% |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 85 |
| Rated Input Current (A) | 38.4 |
| Power Factor | 0.93 |
| No Load Voltage (V) | 70 |
| No Load Loss (W) | 100 |
| Output Current Range (A) | 40-400 |
| Rated Output Voltage (V) | 40 |
| Duty Cycle (%) | 100 |
| Net Weight (KG) | 14.3 |
| Dimensions (MM) | 510 x 240 x 430 |
| Insulation Grade | F |
| Protection Grade | IP21S |

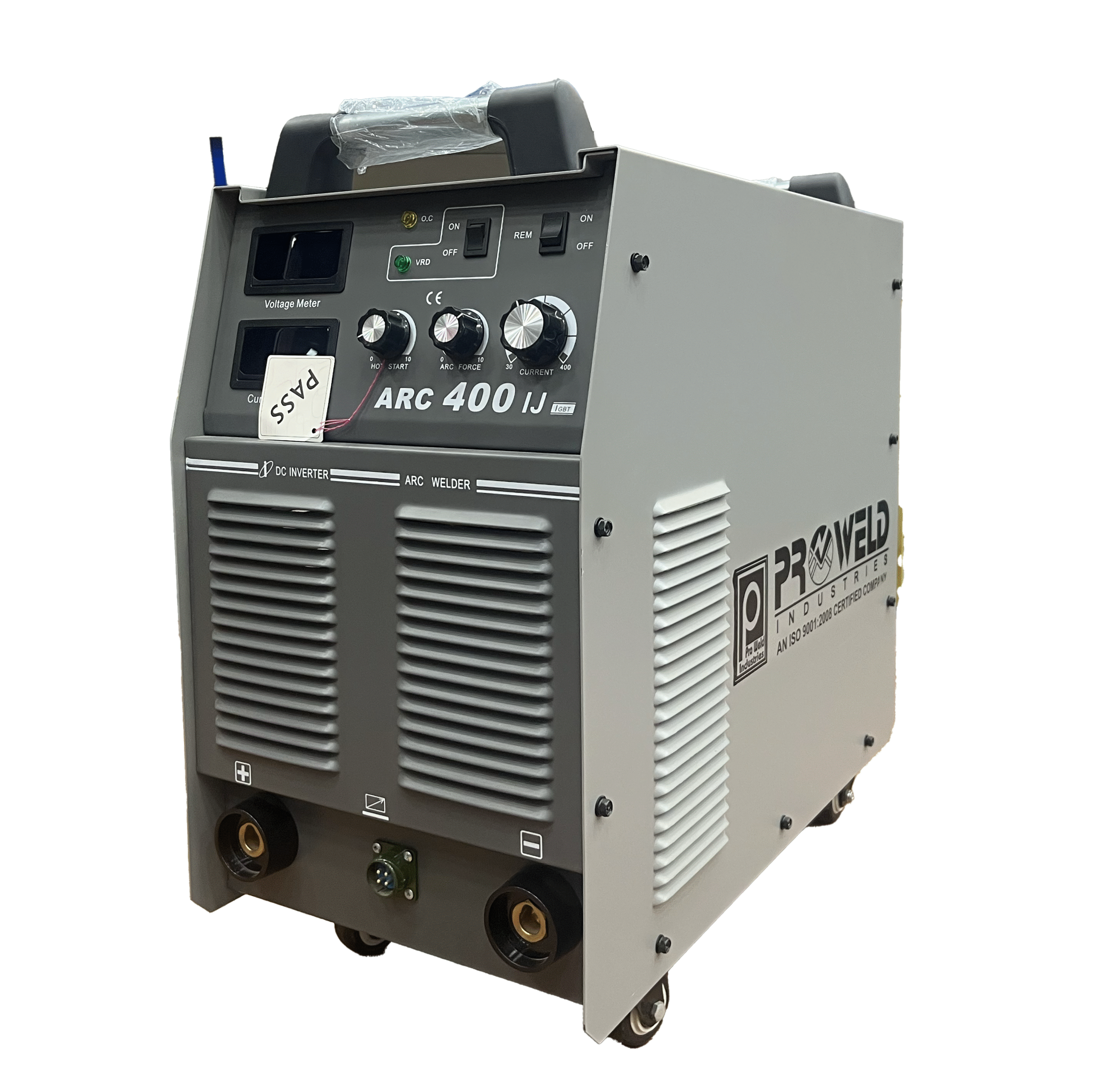

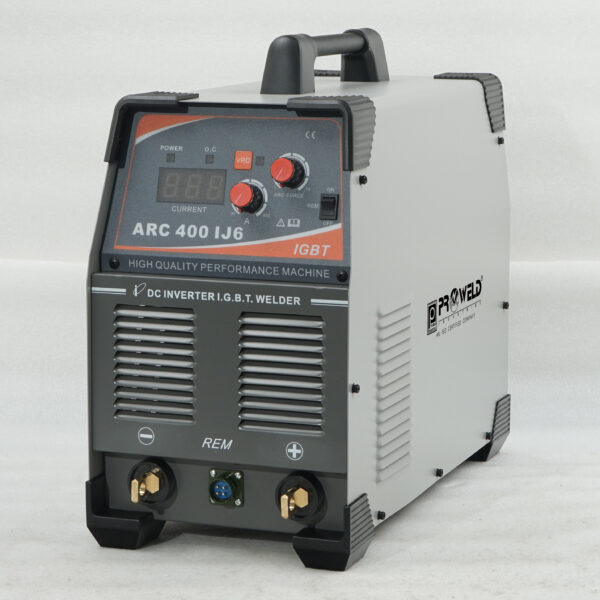

ARC 400 IJ6
Key features
-
IGBT module technology guarantees stable and high-power welding performance with excellent energy efficiency, suitable for heavy industrial and precision welding tasks.
-
Supports continuous welding with a 100% duty cycle enabling uninterrupted operation for professional welding projects.
-
Capable of welding with 5.0mm electrodes continuously, accommodating various acid and alkaline electrode brands for versatile applications.
-
Equipped with arc force, fast arcing, and anti-stick electrode features that improve welding quality and reduce electrode sticking, enhancing ease of use.
-
Features automatic overcurrent and overheating protection for safe operation and long machine life under intensive use.
-
Includes automatic compensation for power grid voltage fluctuations, maintaining stable arc performance even in unstable electrical conditions prevalent in India.
-
Compact and portable design (14.3kg, 510x240x430mm) facilitates easy handling, transport, and installation at various sites.
| Phases | 3 phase |
|---|
