| Parameter | Value |
|---|---|
| Model | ARC400G2 |
| Input Voltage (V) | AC220 ± 15% |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 80 |
| Rated Input Current (A) | 39 |
| Power Factor | 0.73 |
| No Load Voltage (V) | 82 |
| No Load Loss (W) | 40 |
| Output Current Range (A) | 30-400 |
| Rated Output Voltage (V) | 28 |
| Duty Cycle (%) | 60 |
| Net Weight (KG) | 8.5 |
| Dimensions (MM) | 440 x 210 x 310 |
| Insulation Grade | F |
| Protection Grade | IP21S |

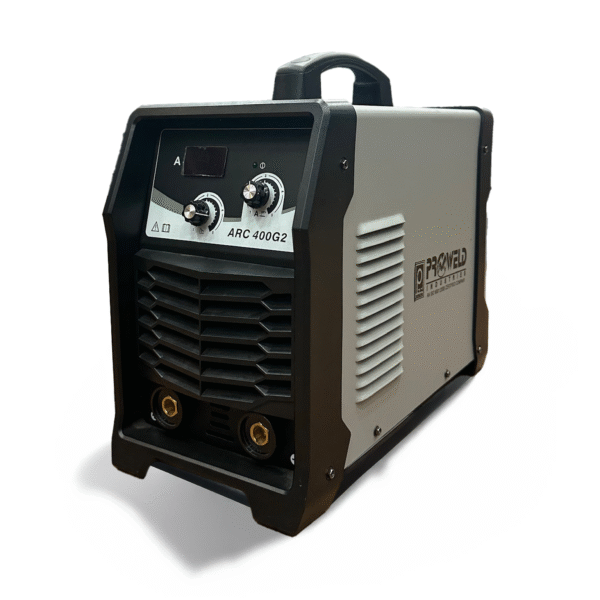

ARC 400 G2
Key Features
-
Unique IGBT high-frequency inverter technology for fast dynamic response
-
Small size, lightweight, offering high efficiency and energy-saving performance
-
Integrated arc force control for fast arcing and non-stick welding rod operation
-
Automatic overcurrent and overheating protection
-
Built-in automatic compensation for power grid voltage fluctuations, resisting unstable power supply
-
Compatible with various brands of acid and alkaline electrodes, and cellulose electrodes
-
Supports continuous 4.0mm electrode welding (even with 100m welding cable)
-
Portable size with high duty cycle and low spatter
| Phases | 3 phase |
|---|
