| Parameter | Value |
|---|---|
| Model | ARC 325L PRO |
| Input Voltage (V) | AC230/415V |
| Wide Input Voltage Range | 130V-560V |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 80 |
| Rated Input Current (A) | 230V: 30.3 / 415V: 19.03 |
| Power Factor | 0.73 |
| No Load Voltage (V) | 70 |
| No Load Loss (W) | 60 |
| Output Current Range (A) | 30-325 |
| Duty Cycle (%) | 60 |
| Rated Output Voltage (V) | 230V: 26 / 415V: 30 |
| Net Weight (KG) | 4.85 |
| Dimensions (MM) | 440 x 180 x 315 |
| Insulation Grade | F |
| Protection Grade | IP21S |

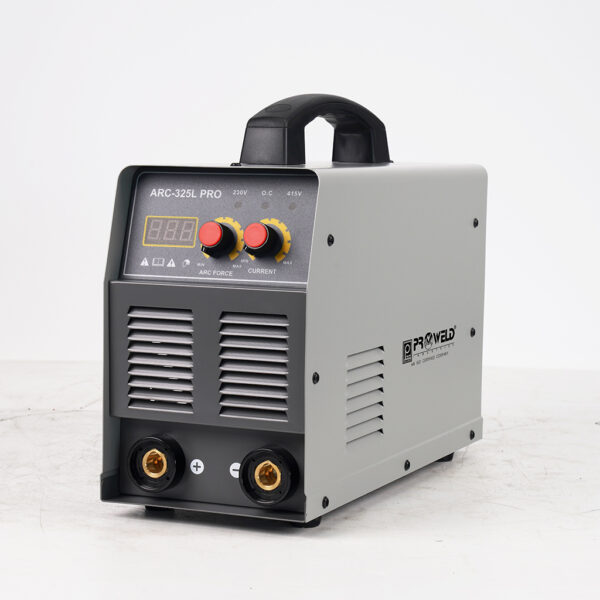

ARC 325 L Pro Welding Machine
Key Features
-
Unique IGBT high-frequency inverter technology, fast dynamic response
-
Small size, light weight, high efficiency, and energy saving
-
With the function of arc force, fast arc, non-stick welding rod
-
With automatic overcurrent and overheating protection function
-
Has automatic compensation function for power grid voltage fluctuations and strong ability to resist power grid fluctuations
-
Various brands of acid and alkaline electrodes can be used for welding; cellulose electrodes can be welded
-
4.0mm electrode welding continuously, 100 meters of welding wire can also be welded normally
| Phases | Single double phase |
|---|
