| Parameter | Value |
|---|---|
| Model | ARC300 MOS/3 |
| Input Voltage (V) | AC380 ± 15% |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 80 |
| Rated Input Current (A) | 39 |
| Power Factor | 0.93 |
| No Load Voltage (V) | 82 |
| No Load Loss (W) | 40 |
| Output Current Range (A) | 30-300 |
| Rated Output Voltage (V) | 28 |
| Duty Cycle (%) | 60 |
| Net Weight (KG) | 9 |
| Dimensions (MM) | 470 x 210 x 380 |
| Insulation Grade | F |
| Protection Grade | IP21S |

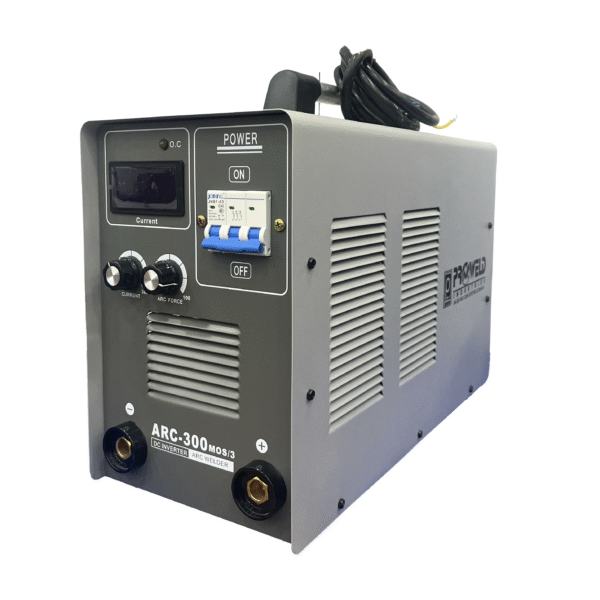

ARC 300 (MOSFET)
Key Features
-
Traditional MOSFET technology ensures stable quality and reliable welding performance, suited for professional and industrial applications.
-
Compact, lightweight design with 80% efficiency and energy-saving operation supports portability and cost reduction in workshop and on-site welding tasks.
-
Equipped with arc force, fast arcing, and non-stick electrode functions to enhance welding quality and reduce electrode sticking for smoother operations.
-
Features automatic overcurrent and overheating protection, providing safety and machine longevity during prolonged use.
-
Includes automatic compensation for power grid voltage fluctuations, ensuring consistent arc stability even under unstable electrical supply conditions typical in India.
-
Designed with a 60% duty cycle and output current range up to 300A to support continuous heavy-duty welding jobs.
| Phases | 3 phase |
|---|
