| Parameter | Value |
|---|---|
| Model | ARC251GST |
| Input Voltage (V) | AC150-500 |
| Frequency (Hz) | 50/60 |
| Efficiency (%) | 80 |
| Rated Input Current (A) | 220V: 30.3 / 380V: 19.03 |
| Power Factor | 0.73 |
| No Load Voltage (V) | 70 |
| No Load Loss (W) | 60 |
| Output Current Range (A) | 30-150 / 30-250 |
| Rated Output Voltage (V) | 220V: 26 / 380V: 30 |
| Duty Cycle (%) | 60 |
| Net Weight (KG) | 4.2 |
| Dimension (MM) | 330x160x250 |
| Insulation Grade | F |
| Protection Grade | IP21S |

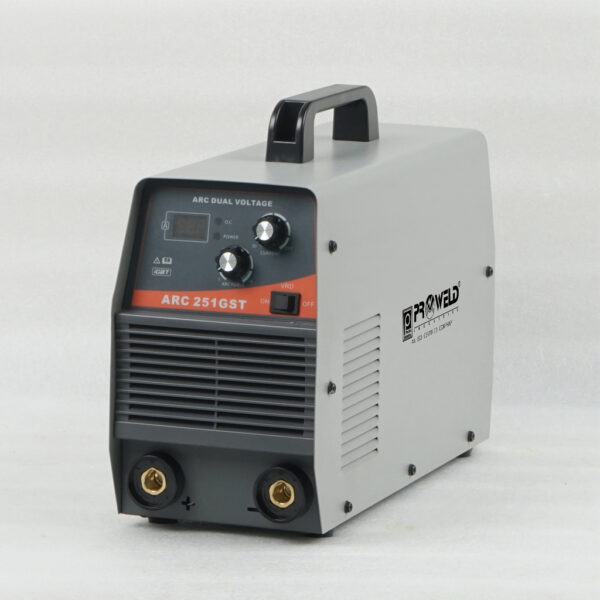

ARC 251 GST Welding Machine
Features
-
Double Voltage
-
VRD Function (Voltage Reduction Device)
-
Small Spatter
-
Portable Size
-
Unique IGBT high-frequency inverter technology, fast dynamic response
-
Small size, light weight, high efficiency, and energy saving
-
Function of arc force, fast arcing, non-stick welding rod
-
Automatic overcurrent and overheating protection
-
Automatic compensation for power grid voltage fluctuations
-
Can weld with various brands of acid, alkaline, and cellulose electrodes
-
3.2mm electrode welding continuously, 100 meters of welding wire can be used normally
-
220V or 380V power supply intelligent conversion
-
Able to perform normal welding within AC150V-500V power supply range
| Phases | Single double phase |
|---|
