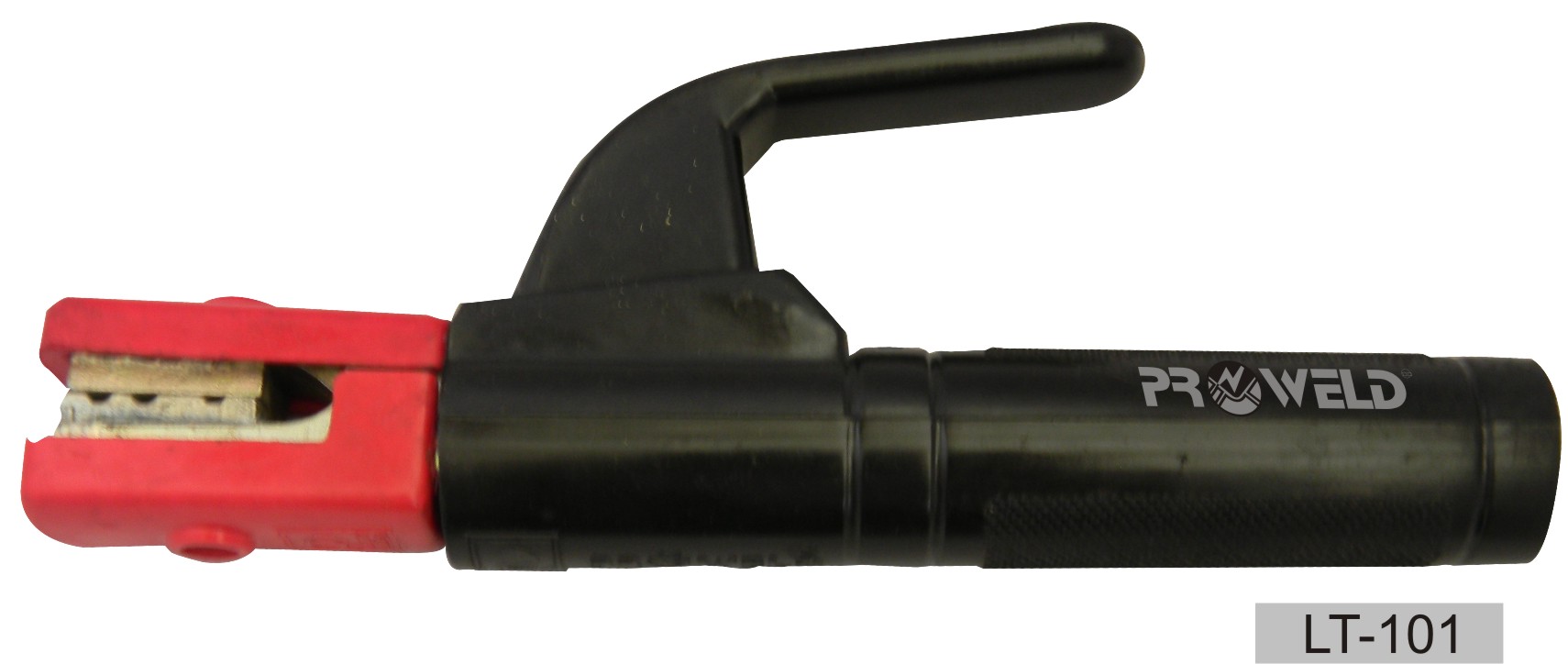

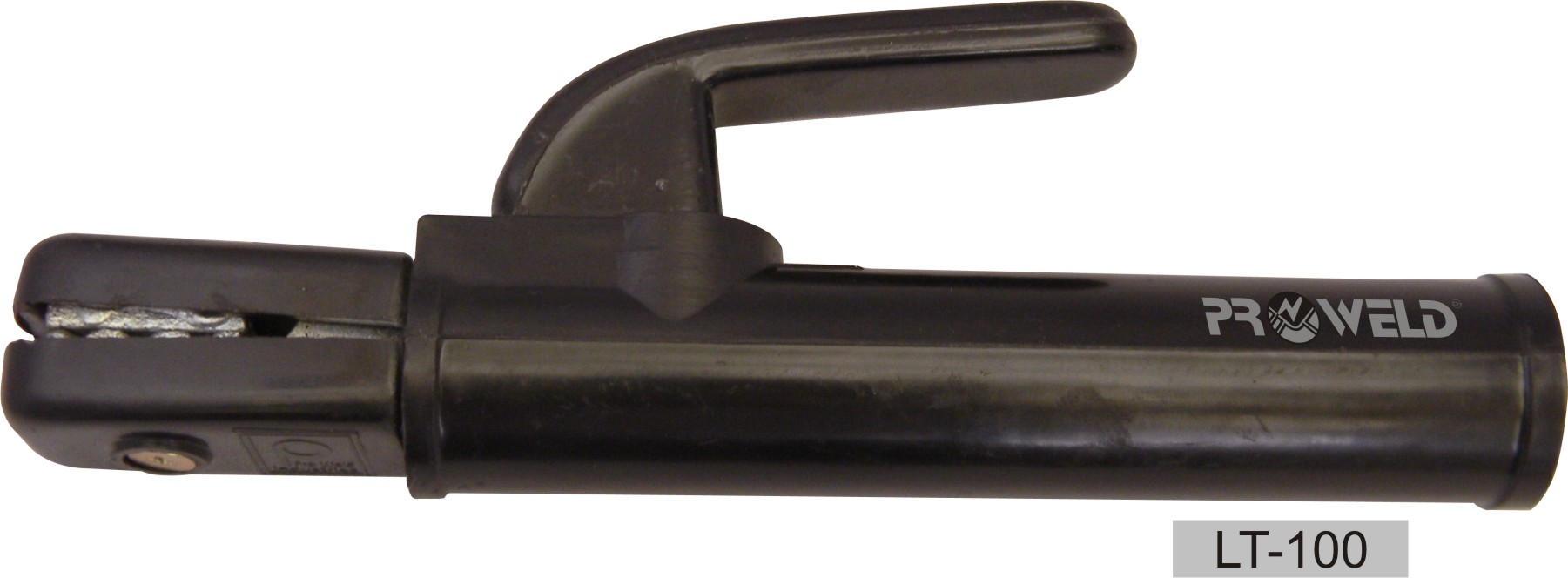

Fully Insulated Welding Holders (Type A)

PROWELD Welding Electrode Holders are suitable for manual metal arc welding with covered electrodes of length not more than 450mm, 'PROWELD' Welding holders are fitted with special copper alloy jaws which have more thermal conductivity than copper resulting in less heating problems during welding processes and hence greater life.

FEATURES

• PROWELD Electrode Holders are suitable for use on circuits with open circuit voltage up to and including 100 volts (rms).
• They are light in weight so as to reduce handling problems.
• They have the provision for alternative positions for gripping electrodes to avoid the necessity for bending the electrodes when welding in different positions.
• Their design is such that under normal conditions of service, It is possible to weld with electordes in any position in the holder until a stub only 40 mm in length remains without damage to the holder.

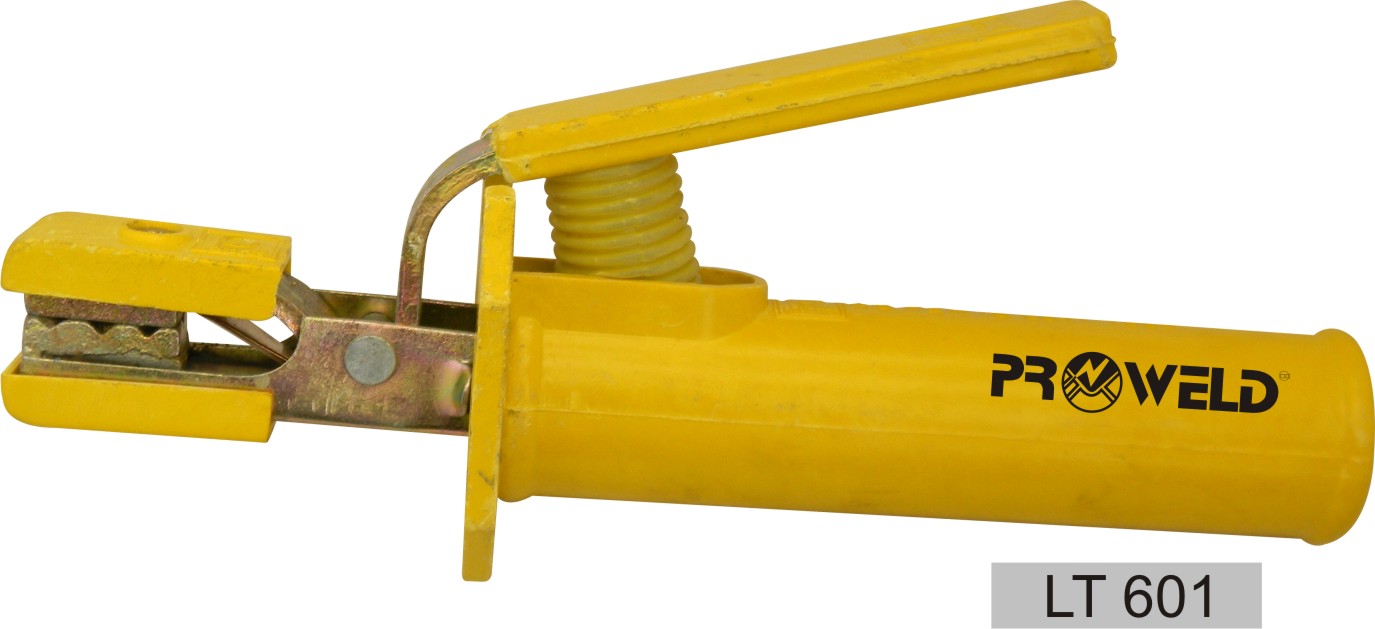

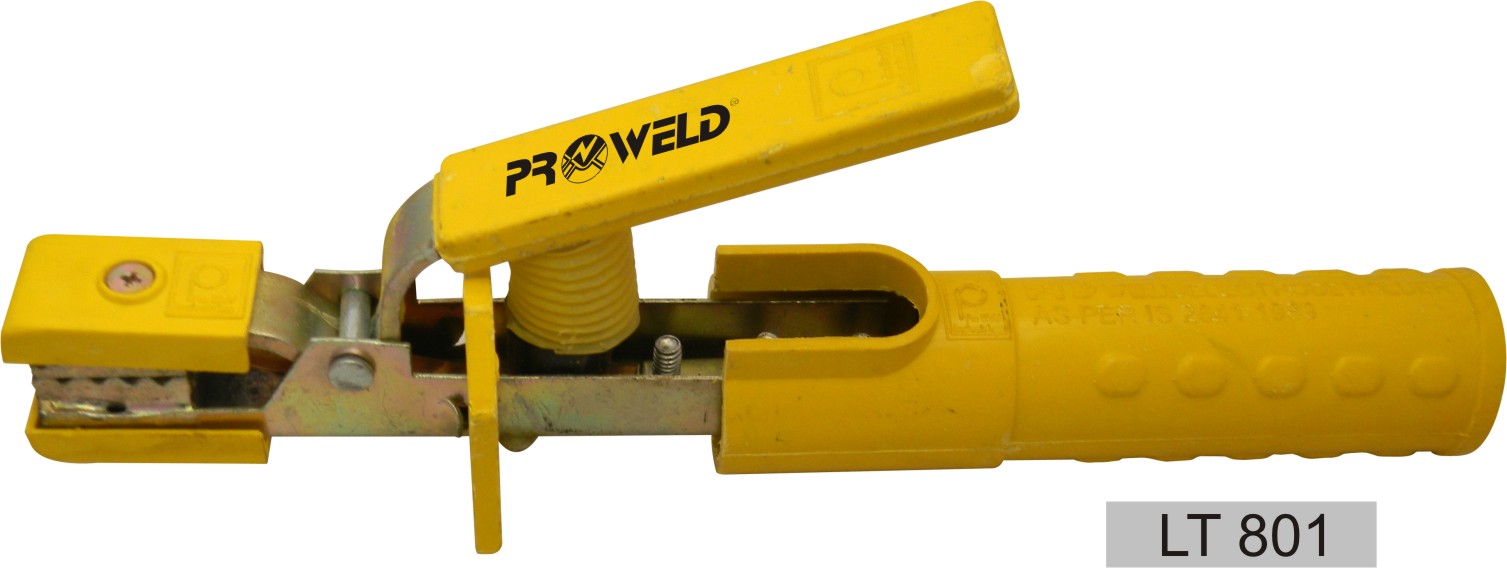

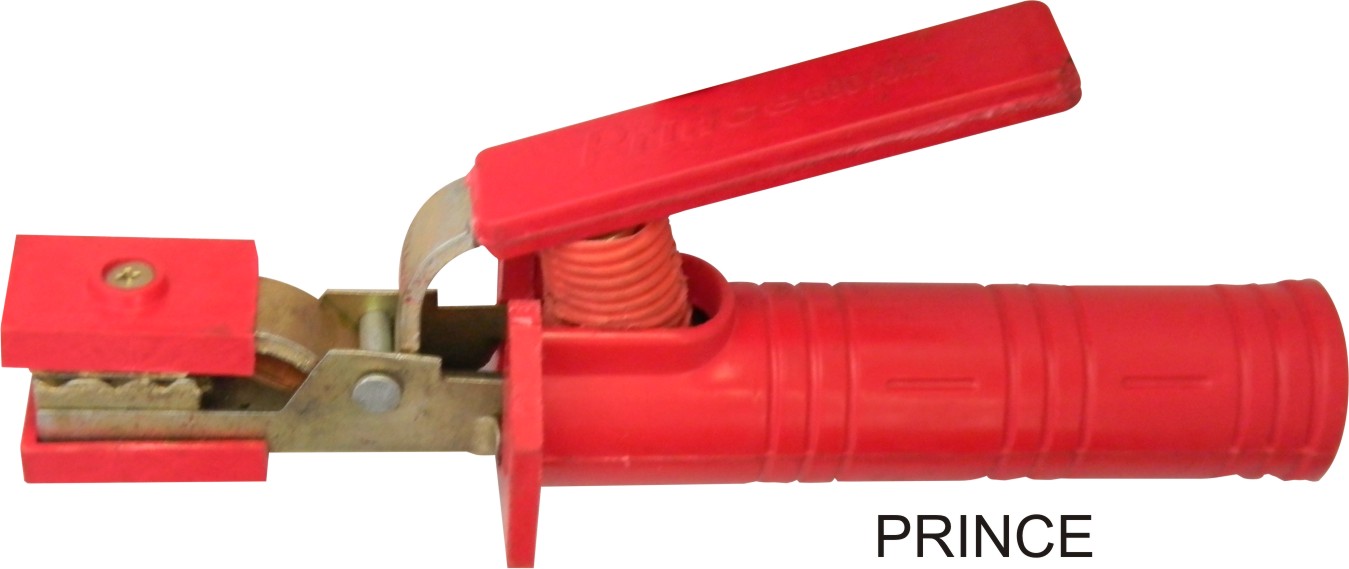

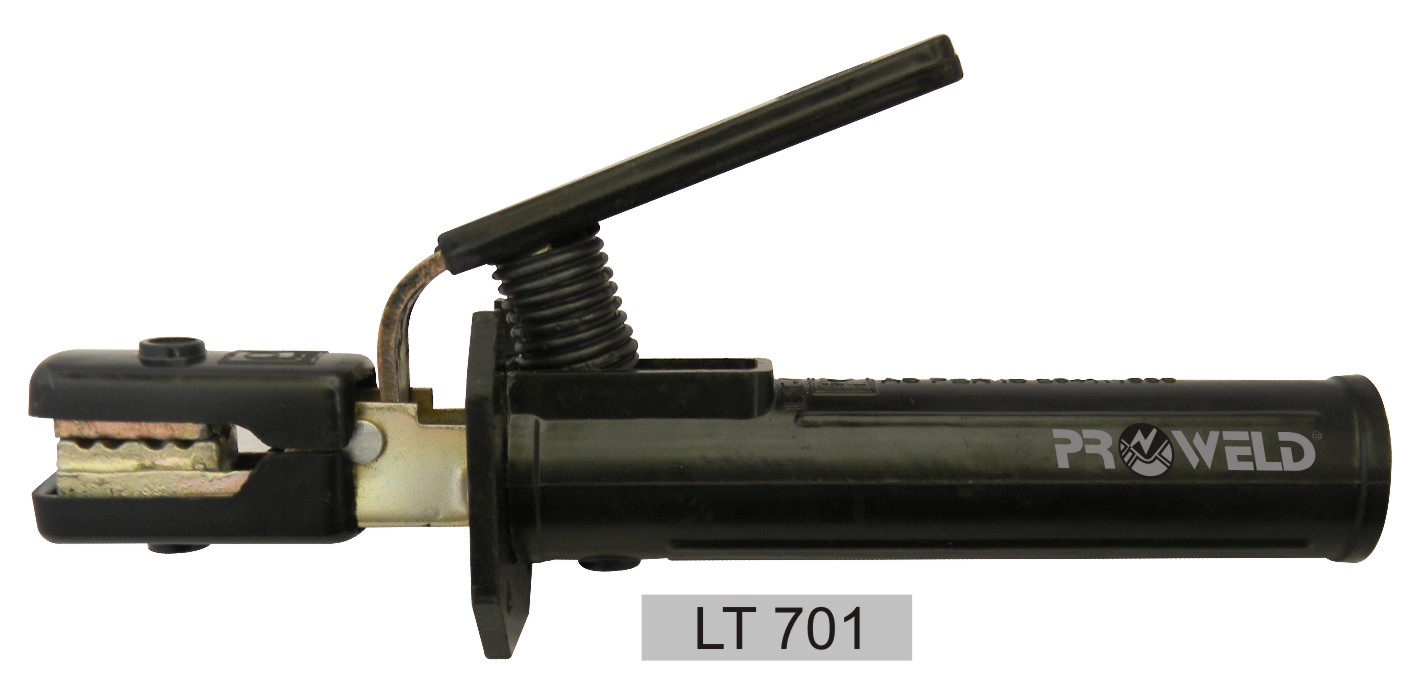

Semi Insulated Welding Holders (Type B)

PROWELD Electrode Holders are suitable for adverse welding conditions like shipbuilding,construction fabrication, dockyard or welding in enclosed conditions like vessels etc. They are designed for safe and comfortable welding. They are provided easy and effective connection of cable to holder. Their jaws are made from Nonferrous Metallic alloy which transmit 100% current to the electrode.

FEATURES

• For High Conductivity of Current (Copper/Brass) Body.
• Heat Resistant insulators For Longer Life.
• Heavy Duty Manual Arc Welding.
• Current Rating Up to 1000 Amps.
• Suitable For Electrode Dia up to 5mm open Mouth Jaw type.
